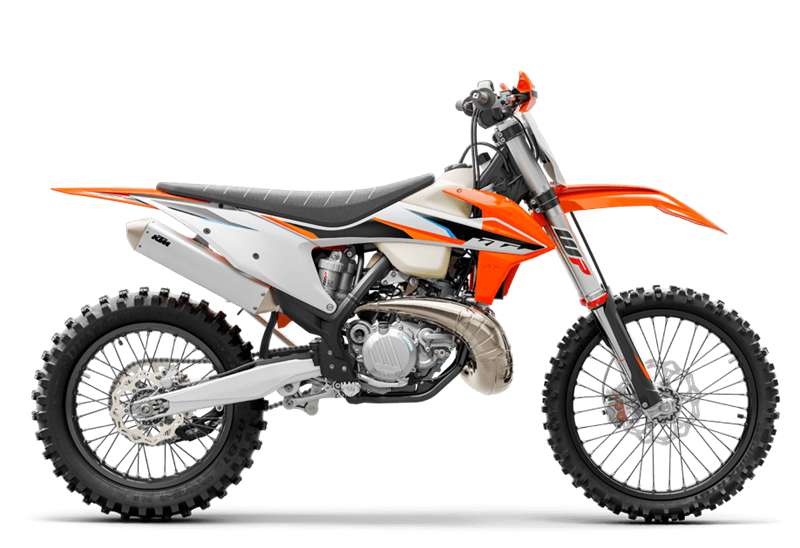

2021 KTM 250 XC TPI
Simply put, the KTM 250 XC is a hardcore cross-country missile. Sharing most of its DNA with the KTM 250 SX, it boasts the same awesome 2-stroke acceleration with a remarkably lightweight chassis. What this means it that the 250 XC simply chews up fast and technical terrain. A clear fuel tank and 18" rear wheel also aids in making this a really capable SX-derived offroad racing weapon.
Wet, DDS multi-disc clutch, Brembo hydraulics
1-cylinder, 2-stroke engine
WEIGHT (WITHOUT FUEL)
TANK CAPACITY (APPROX.)
FRONT BRAKE DISC DIAMETER
REAR BRAKE DISC DIAMETER
5/8 x 1/4"
Central double-cradle-type 25CrMo4 steel
WP XACT-USD, Ø 48 mm
WP XACT Monoshock with linkage
STEERING HEAD ANGLE
SUSPENSION TRAVEL (FRONT)
SUSPENSION TRAVEL (REAR)
ENGINE & EXHAUST
- The 250cc 2-stroke engine has plenty power and torque, but remains light enough for riders to muscle their way through the toughest obstacles. Thanks to state-of-the-art engineering, innovative 2-stroke design and revolutionary TPI fuel injection technology, the powerplant is even more refined than ever before. The compact and lightweight 2-stroke is a great choice for offroad riders who want usable enduro performance that is ready to conquer in the most extreme terrain.
- This compact cylinder with a 66.4 mm bore and with refined port timings and the aid of a sophisticated power valve, provides smooth and controllable power characteristics. For the EFI application the cylinder features two lateral domes which hold the fuel injectors that supply fuel to the rear transfer ports. The downstream injection guarantees excellent atomization of the fuel with the upstreaming air. Thus, the loss of unburnt fuel is minimal, resulting in less emissions, a more efficient combustion and reduced fuel consumption. A small tube in the back of the cylinder is connected with an intake pressure sensor, which supplies pressure data to the control unit. The exhaust port layout increases engine performance, while the upper contour of the exhaust port has been machined to ensure more accurate port timing. The new cylinder, with TPI technology, produces outstanding performance over the entire range with significantly increased torque compared to its predecessor.
- The compact engine cases are manufactured using a high pressure die-cast production process which helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the center of gravity, resulting in ideal mass centralization and easier ride-ability. The engine covers feature a smart surface structure which reduces wear caused by the rider's boots, keeping them looking as fresh as the day you bought your XC TPI.
- The robust 6-speed transmission made by PANKL Racing Systems features an Enduro-specific wide-ratio specification and provides precise and easy shifting. An advanced ´No Dirt´ gear shift lever design prevents mud and dirt from blocking the joint. Because even dirt lovers hate mud when it's in the wrong places.
- Say goodbye to numb feet and hands. This engine design allows the implementation of a lateral balancer shaft in order to keep the vibrations to a minimum. You know what that means: more comfort, less fatigue, more racing.
- The KTM 250 XC TPI employs the KTM-developed DDS clutch (damped diaphragm steel) with a robust steel basket, extremely heat resistant clutch plates and new, nitrated steel liners reducing the wear. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but durability is as well. Light operation and telepathic amounts of control are standard with this hydraulic Brembo actuated clutch.
- The TPI engine is fitted with a 39 mm throttle body made by Dell`Orto. The airflow is regulated by a butterfly connected with a twin-cable throttle cam, which is operated by the handlebar throttle assembly. A throttle position sensor provides airflow data to the control unit, while a bypass screw allows the regulation of the idle speed. The cold start device also opens a bypass supplying more air. Via an oil intake tube oil supplied from the oil pump is mixed with the incoming air to lubricate crankshaft bearings and cylinder/piston etc.
- The engine management system (EMS) of the TPI models features a control unit located below the seat. The ECU defines the ignition timing while the amount of fuel to inject is based on several sensor readings such as intake air pressure, throttle position and water temperature plus a new additional ambient air pressure sensor. Thanks to altitude and temperature compensation the rider does not need to worry about fiddling around with the jetting anymore. Should the rider decide to mount a radiator fan from the KTM PowerParts program, it will be controlled directly by the EMS without needing to add an additional thermal switch.
- Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 300 XC-W TPI features radiators which are mounted close to the center of gravity and match the design of the shrouds perfectly, in order to achieve perfect ergonomics. The additional KTM PowerParts radiator fan is regulated by the EMS control unit for easy installation. Thanks to flow optimized internal circulation and CFD-calculated ventilation, the system is superbly efficient. In addition the radiator protectors improve heat dissipation. Especially in the mud. They are also integrated into the front part of the shrouds to protect the radiators in a crash.
- When it comes to power delivery and performance, the exhaust plays a key role and packs a punch that is hard to beat. The 250 cc and 300 cc models feature HD exhaust pipes (heavy-duty) made by using an innovative 3D stamping process which produces a ribbed surface finish. This makes the pipe much stronger, with better resistance against rocks, while also helping to reduce noise drastically. The silencer features a compact shape and end cap with internal designs individually developed for each model, while it is mounted using an aluminum mounting bracket. In addition, the exhaust's shape provides slim ergonomics and more ground clearance, while a perforated inner silencer tube works with lighter damping material for efficient and durable noise reduction.
- The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on precisely calculated stiffness of the frame. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to more precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tips the scales at less than 2 pounds.
- The cast aluminum design offers low weight and a perfect flex behavior. The single-component casting process eliminates any inconsistencies and inherent weak points created by welding. It's better looking too.
- The KTM 250 XC TPI is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.
- The lightweight WP XACT front fork with AER technology, a 48 mm USD air-sprung fork developed by WP in close collaboration with KTM, is a split fork with separate functions for each leg. That means damping functions are on the right side, whereas the air spring is in the left. This left leg features a 2-chamber system with a capsuled air cartridge to prevent loss of air pressure. Should the outer seal start to leak, the internal cartridge pressure will keep the bike in position. The air spring is easy to adjust to any rider weight via a single air valve. No extra special tools are required; the fork air pump is supplied with the bike. The right fork leg integrates a damping cartridge that tailors to all your damping needs. It can be adjusted to the track conditions and the rider's preferences with a twist of a dial (compression from the top, rebound from the bottom, 30 clicks each). Right off the dealer floor, this fork (with reworked damping characteristics and new piston) is more comfortable and more sensitive than ever. But you can still hammer the hell out of it.
- The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. The progressive damping is achieved by a second piston, which works together with a closed cup towards the end of the stroke. This design contributes to an optimal progression behavior of the damping supported by a progressive shock spring. It is fully adjustable, including high and low-speed compression, so you can set the shock up to suit any track, trail and rider preferences.
- Top quality, CNC machined triple clamps have been a KTM trademark for years to ensure precise handling. The rubber damped handlebar fixation allows for two positions and an hourmeter is fitted in order to let the rider know it's time for a service.
- These high-tech Brembo brakes are combined with lightweight wave discs. You couldn't brake any harder, better, faster or stronger.
- This is a lightweight polyethylene tank with a capacity of 2.4 gallons. Manufactured using see‐through plastic, you will always be able to see how much fuel remains at a glance. Additionally, the XC TPI models incorporate an integrated fuel pump system and an additional fuel level sensor so you'll always know when you're running low on gas.
- The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow, and together with the intake snorkels, results in optimal power and throttle response. The large Twin Air air filter is mounted on a stiff cage, which at the same time holds the system in place. This design is so simple, you could still pop a fresh one in with a face full of mud. Without tools. In seconds.
ERGONOMICS & COMFORT
- KTM engineers sure know how to handle handlebars. This tapered unit, made of high-strength aluminum by NEKEN, features a throttle assembly which has a twin-cable for TPI models just like their 4-stroke brothers with a double-cable aluminum body and straightforward free-play adjustment. A vulcanized grip sits on the right, while on the left side of the bar a comfortable ODI lock-on grip is mounted, which does not require any wire or glue to be fixed.
- Sophisticated ´No Dirt´ footpegs prevent smudging up the pegs, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the EXC models, which are 6 mm higher than the XC versions.
- The XC range features state-of-the-art seat technology with a newly shaped surface that provides improved ergonomics and much better seat comfort thanks to higher foam padding. The seat is conveniently fixed to the bike using one long, lateral screw, making it safe and easy to handle.
BODYWORK & GRAPHICS
- Simply riding a KTM 250 XC TPI attracts the attention of onlookers, but the new inlay graphics definitely make them turn for a second look.
